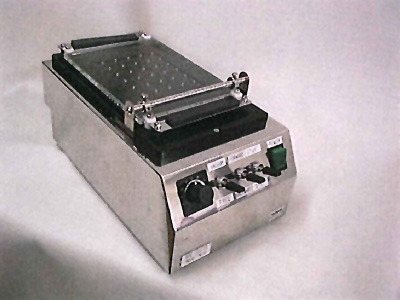

MC-20 Mini-Coater

Model: MC-20

  • Simple operation
  • Compact design
  • A built-in vacuum pump


Power supply:

AC100V, 50/60 Hz, 2A [optional transformer is available], 2-prong plug.

External ground terminal is on the stainless steel cover.

Coating range: 100mmW (Applicator/Blade Width) x 100mmL (Maximum Stroke)
Coating speed: 2.5 ~ 12 mm/sec (50Hz)
Accessories: Baker type applicator
* Baker type applicator: Width: 100mm / Thickness: 0~254 µ
* Doctor Blade: Width: 100mm / Thickness: fixed
(Please specify a thickness between 0.01~0.5mm)
Vacuum pump: Built in
Size: 210mmW x 150mmH x 350mmD
Weight: Approx. 9kg

Note:                      Model MC-30 is also available, including a micrometer adjustable film applicator and transformer

                                Coating width: 100mm

Application: Advanced energy
Product type: Machinery
Production scale: Lab
