All technical data presented represent typical results, unless stated otherwise as min/max values.
No guarantee is made that material will meet exactly the values shown.

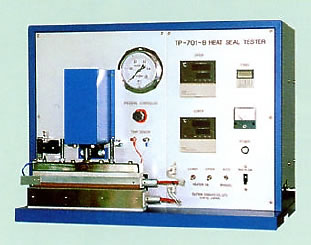

Heat Sealer

Objective:

This machine is to test many conditions for sealing aluminum-laminated film in terms oftemperature, pressure, and time.

1. Method: Air-cylinder: Diameter 50mm, Stroke: 50mm
2. Sealing Bars:

Upper Bar
   1) Size: 5~25 width (to be defined by User) x 300 length in mm
   2) Heater: 450W
   3) Material: Aluminum w/ PTFE coated
Lower Bar
   1) Size: 40 width x 320 length in mm
   2) Heater: 450W
   3) Material: Iron w/ r-3 plated
   4) Silicon Rubber Sheet: 40 x 320 5 in mm

3. Timer: Digital, 0.1 ~ 99.9 sec.
4. Temperature: 50 ~ 300 Celsius Degree
Control: Digital PID thermal control on both bars
5. Pressure: 5Kgf/cm2, air-filter
6. Start Trigger: Foot-switch
7. Utility: AC100V 50/60Hz
8. Dimensions: approx. 720 x 400 x 540 in mm
9. Weight: approx. 55kg



Application: Advanced energy
Product type: Machinery
Production scale: Lab, Pilot
